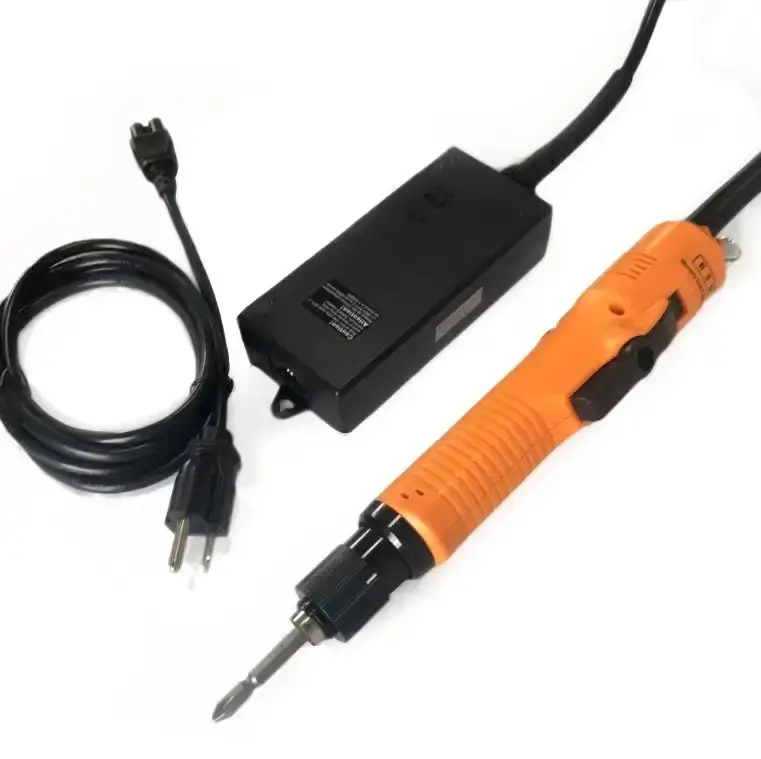

ไขควงทอร์คไฟฟ้า 3-16Kgf.cm Torque Screwdriver BSD-6600LB

DESCRIPTIONS:

• New technology, fully automation, as fastened screw reach preset torque, clutch will stops immediately.
• Friendly holder, free from fatigue under long-time using and improve production efficiency.
• Low-voltage with power controllers, no influence by fluctuated voltage can keep long-time operation.
• Precise torque, torque adjusted from small to large, stepless and stable.
• Rotation speed can select by switch Hi & LO or adjust freely by VR.

SPECIFICATIONS:

• Model: BSD-6600LB
• Input voltage: 32 VDC
• Rated input: 48 Watts
• Torque range:
  • 3~16 Kgf.cm
  • 2.57~13.89 Lbf.in
  • 0.29~1.57 N.m
• Unload Speed HI/LO ±10%:
  • HI: 1,000 rpm
  • LO: 700 rpm
• Metal assembly screw:
  • Machine screw: 2.3~3.5 mm
  • Tapping screw: 2.3~3.0 mm
• Torque Accuracy: ±3%
• Torque Adjustment: Stepless
• Weight: 480 g
• Length: 230 mm
• Model of Torque Fixing Ring: KC-3
• Bit Type: HEX 6.35 mm

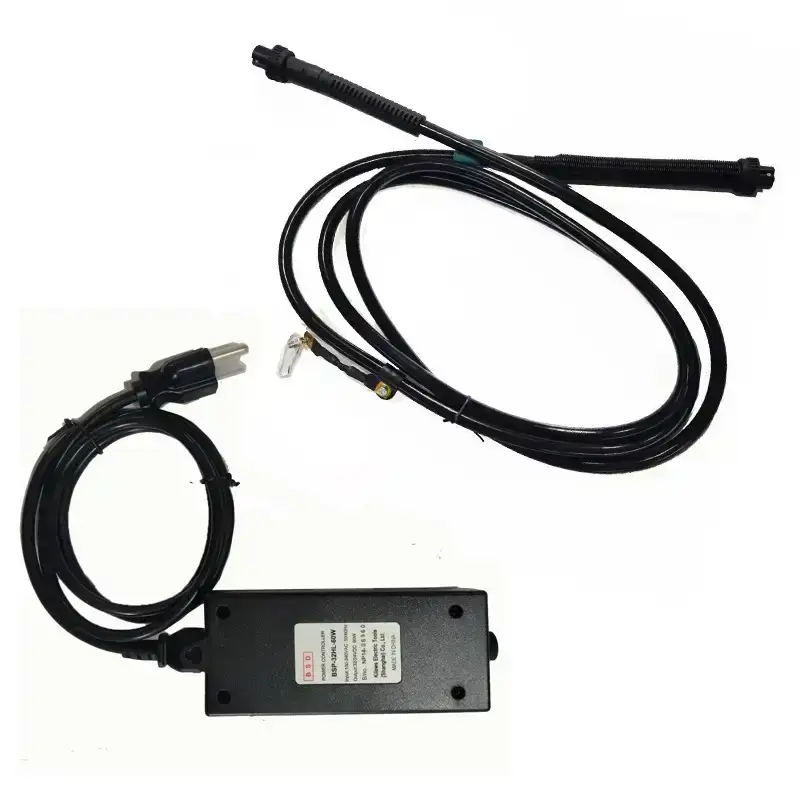

• Power controller: BSP-32HL-40W, BSP-32VR-40W
