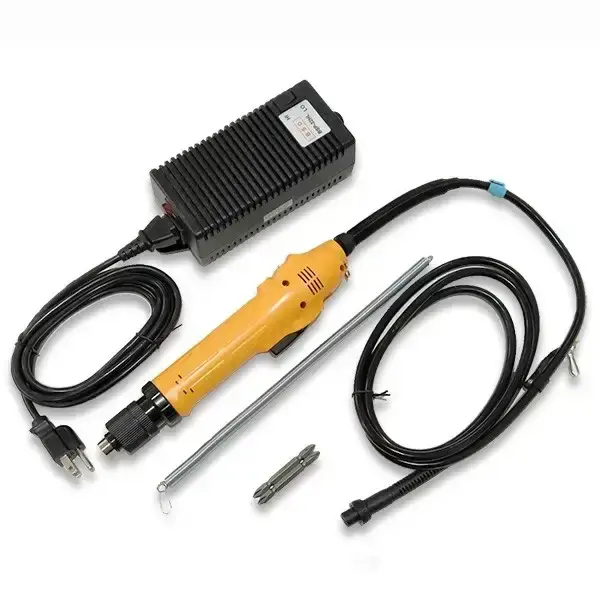

ไขควงทอร์คไฟฟ้า Torque Screwdriver BSD-8800LB

DESCRIPTIONS:

• New technology, fully automation, as fastened screw reach preset torque, clutch will stops immediately.
• Friendly holder, free from fatigue under long-time using and improve production efficiency.
• Low-voltage with power controllers, no influence by fluctuated voltage can keep long-time operation.
• Precise torque, torque adjusted from small to large, stepless and stable.
• Rotation speed can select by switch Hi & LO or adjust freely by VR.

SPECIFICATIONS:

• Model: BSD-8800L
• Input voltage: 24VDC or 32VDC
• Rated input: 50W
• Torque range:
  • 8-30Kgf.cm
  • 6.9-26.02Lbf.in
  • 0.78-2.94N.m
• Unload Speed HI/LO ±10%: 530/350RPM
• Metal assembly screw:
  • Machine screw: 3.0-5.0mm
  • Tapping screw: 3.0-4.0mm
• Torque Accuracy: ±3%
• Torque Adjustment: Stepless
• Weight: 600g
• Length: 260mm
• ESD (Anti-Static): Yes
• RoHs: Yes
• Model of Torque Fixing Ring: KC-2
• Suspension Rack: KH-3(KC&KH-1)
• Bit Type: HEX 5mm, HEX 6.35mm
• Power controller: BSP-32HL/32VE-60W
