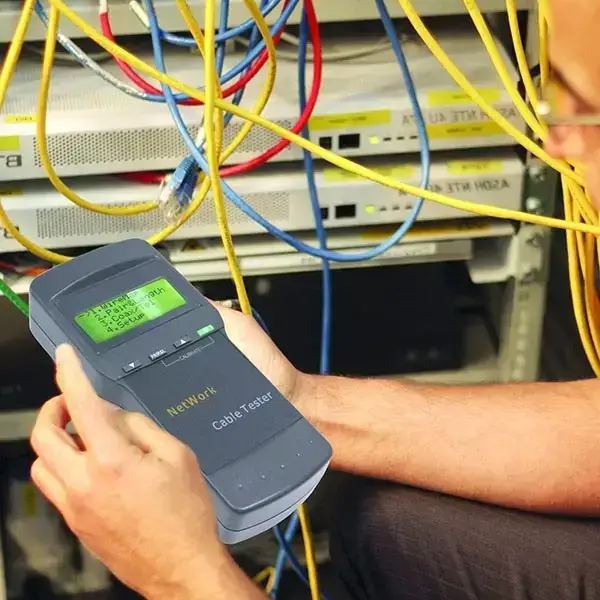

เครื่องทดสอบ วิเคราะห์ ค้นหาปลายสาย LAN Cable Tester

FEATURES:

• One person is enough to complete cable continuity check.
• Check wiring error in 5E, 6E, coaxial cable such as open circuit, short circuit, jumper wire, and reverse connection.
• Measure cable length and determine the distance short circuit for LAN cable
• Simple and easy operation with big screen to display result.
• Portable unit with long battery life (wait-case 50 hours)
• Automatically time-delay shut off
• With far-end passive test jacks included in the set
• Self-checking and automatically compensate any change in battery capacity or ambient temperature
• Single board computer software watchdog design and reliable operation

SPECIFICATIONS:

• Overall Dimension
  • Main Tester: 180 x 80 x 40mm
  • Remoter identifier: 77 x 31 x 21mm
• Power:
  • Main tester uses 6V DC for power supply (not included in the set)
  • Receiver uses 9V battery (not included in the set)
• Display: special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2mm)
• Type of cable tested: STP / UTP twin twisted cable, coaxial cable
• Ambient temperature in work: -10~60°C
• Tester Port
  • Tester: RJ45 master port (M), tester LOOPBACK RJ45 port (L)
  • Remote identifier: RJ45 port (R)
• Length Measurement of Twin Twisted Cable
  • Scope: 1~305 M (3~1000 ft)
  • Calibration accuracy: 3% (±0.5M or ±1.5ft) (calibrating cable >10M)
  • Shipment Accuracy: 5% (±0.5M or ±1.5ft) (AMP, AT&T Class 5 cable)
  • Display: M or ft
• Length Calibration: User can calibrate cable length by himself with a given length cable. The length of calibrating cable is more than 10M
• Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit, and reverse connection.
• Locating Cable: Trace cable among a group of unknown cables
• Automatic Time-delay Shut Off Time: If the tester does not operate for 30 minutes
