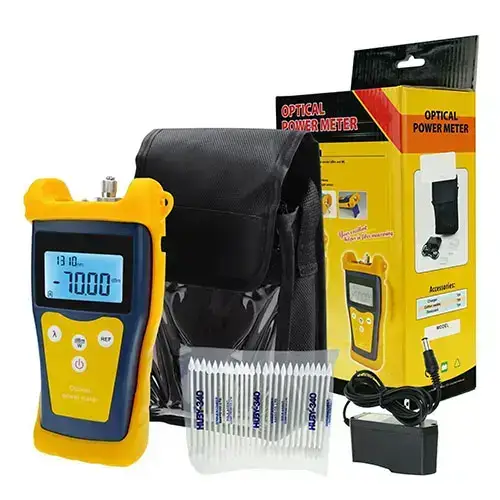

มิเตอร์วัดกำลังงานแสงไฟเบอร์ออฟติก Fiber Optical Power Meter

Features:

• Measuring power output (dBm and W) with Wavelength selection: 850, 1300, 1310, 1490, 1550, 1625nm
• Test loss in fiber (insertion lost test in optical devices). Supports 2.5mm universal connectors.
• FC is included, (SC/ST/LC connector for option). New REF user-defined
• Absolute power measurement and relative power(loss) measurement(when working with light source)
• Optional auto power off function, auto power off indication, auto backlight off function, power status indication, user self-calibration function; can be used in portable type or desktop type

Specifications:

• Power detecting range: -50 to +26dBm
• Unit selection: dBm, W, dB
• Standard wavelength (nm): 850, 1300, 1310, 1490, 1550, 1625
• New REF user-defined
• Self-calibration
• Display resolution: 0.01dBm
• Wave-length: 800-1700nm
• Probe: InGaAs
• Detection limit: ∮ 1.0mm
• Uncertainty degree: ±5%
• Supports 2.5mm universal connectors.
• Optional auto power off function
• Auto power off indication
• Auto backlight off function
• Power status indication
• Working temperature: -20 ~ +70°C
• Storage temperature: -30 ~ +80°C
• Automatic shutdown time: 15min
• Power supply: 9V battery or AC adaptor
• Battery Life: 200hrs for 9V battery
• Meter weight: 275g
• Meter size: 185 x105 x50mm

Set Includes:

• 1x Optical Power Meter
• 1x English Manual
• 1x Protective rubber case
• 1 x AC adaptor
• 1x 9V battery
• 1x pack Cotton swab
• 1x Carry pouch
• 1x Color package box
