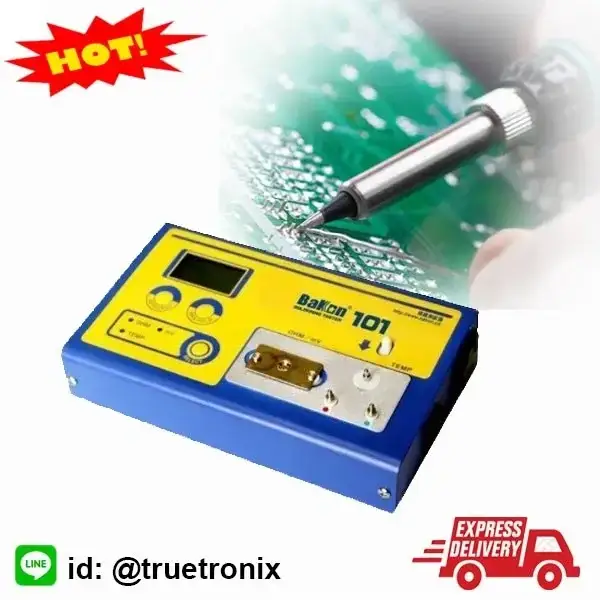

มิเตอร์วัดความร้อน-วัดโวลต์โอห์มปลายหัวแร้ง BK101 Thermometer

Performance

• Soldering irons can be measured based on the MIL-HDBK-263B standard. (When measuring the leak voltage and ground resistance).
• Soldering irons can be measured based on the IPC J-STD. (When measuring the ground resistance).
• Suitable for lead-free solder. (Sensor applicable to lead-free solder has a special coating of wax).
• MAX HOLD function. The maximum value can be displayed when ""MAX HOLD"" button pressed).
• Leak voltage and ground resistance can be easily measured. (Since automatic self-correction of zero point is provided internally).

Technical Data

• Temperature:
  • Resolution: 1ºC
  • Measurement Range: 0ºC ~ 700ºC
  • Precision: +/- 3ºC (in 300ºC ~ 600ºC range)
  • Applied Sensor: K (CA) type thermocouple)
• Voltage:
  • Resolution: 0.1mV
  • Measurement Range: 0 ~ 40mV (AC)
  • Precision: +/- (5% of reading + 1 digit)
• Resistance:
  • Resolution: 0.1Ω
  • Measurement Range: 0 ~ 40 Ω
  • Precision: +/- (5% of reading + 1 digit)
• Power consumption: 2W/220V
• Dimension: (L)200x(W)120x(H)50mm
• Weight: 1kg
• Work environment: 0-40 degrees, 20-90% RH relative humidity
