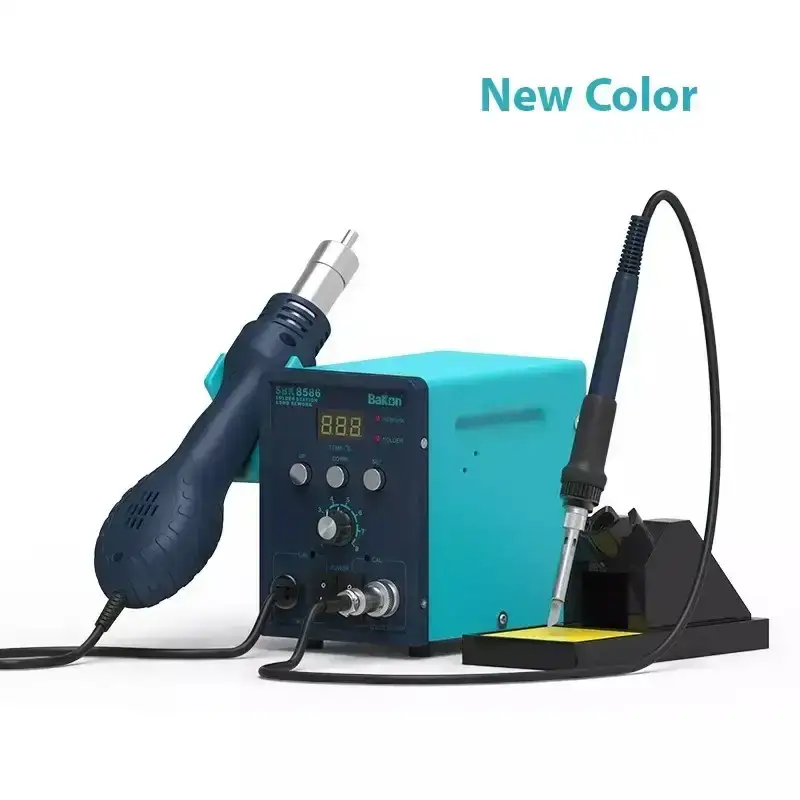

เครื่องเป่าลมร้อนพร้อมหัวแร้ง 2in1 Hot air-Soldering Station SBK8586

FEATURES:

• Compact design, light weight soldering iron and hot air blower meet various soldering demands and remove kinds of chips in repair work.
• 2 in 1 design, save work space and soldering and repair can work individually
• Hot air temperature and volume adjustable, ideal for QFP,SOP,PLLCC and SOJ chips removing.
• Micro control system, digital display, easy to work with
  Pulses heating method, protect heating element, hot air blower from overheating, thus prolongs the machine’s service life.
• ESD safe design, no damage will caused to sensitive components
  Automatic cool off system, protect the heater from overheating.


SPECIFICATIONS:

Rework part

• Input voltage: AC 220V 50Hz / AC 100V 60Hz
• Temp. range: 100~500◦c
• Max power rating: 700W
• Air blowing device: build-in pump
• Air flow: 23L / Min
• Dimensions: (L) 160x (W) 95x (H) 141mm
• Heating element: BK853

Soldering part

• Soldering iron output voltage: AC 24V
• Temp. range: 200~480◦c
• Max power rating: 60W
• Heating element: BK1327
• Temp. range (in idle): ±2◦c
• Tip resistance to the ground: ≤2Ω
• Tip potential to the ground: ≤2mV
