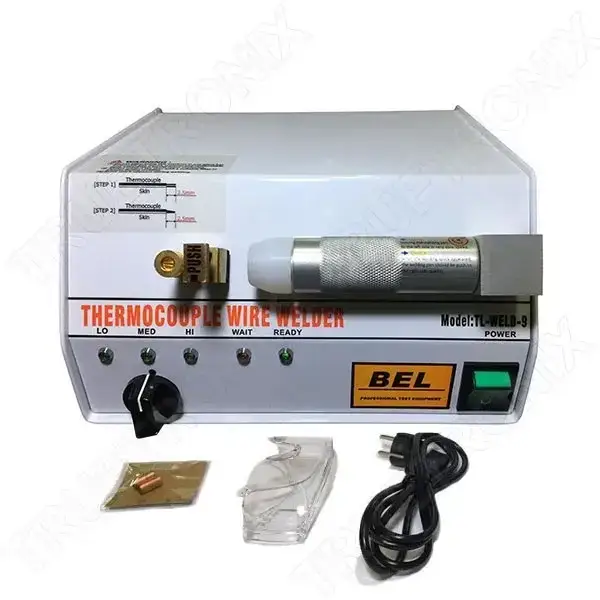

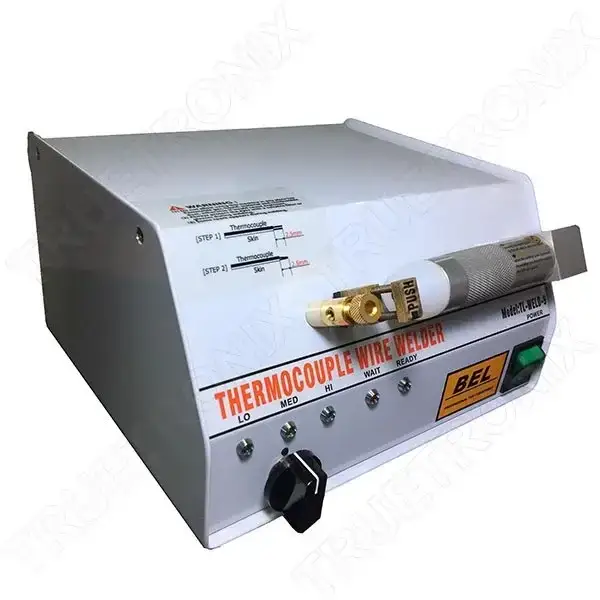

เครื่องเชื่อมสายเทอร์โมคัปเปิล TL-WELD-9 Thermocouple Welder

SPECIFICATIONS:

• Input voltage: 100~120VAC/220~240VAC by selectable switch.
• Store Energy Output: Maximum at 60 joules.
• The cycle Time: Charging time at maximum the energy < 3 sec.
• Wire gauge:
  • Low : 40 ~30 AWG (0.1~0.3mm / 0.003”~0.012”)
  • Medium: 30 ~24 AWG (0.3~0.5mm / 0.012” ~0.020”)
  • High : 24 ~19 AWG (0.5~1.1mm / 0.020” ~ 0.043”)
• Apply with type of the thermocouple: type K / J / E / T / N / R / S / B
• Capability weld : 5-10 welds / min
• Switch control energy : 3 levels of energy output.
• Energy display: LED display level charging status.
• Circuit protection: Fuse 5A.
• Machine dimension: 220mm(W) x 120mm(H) x 200mm(D)
• Weight: 5Kg
• Suitable use for: Laboratory, Department of Engineering, Temperature Test Lab, University Lab, Research Center.
