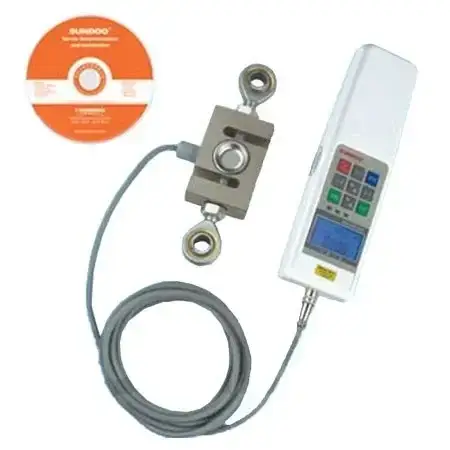

เครื่องวัดแรงดึงแรงกดดิจิตอล SH-5K Digital Force Gauge 5000N

SH Series Digital Push Pull Force Gauge is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product, connecting to computer to display the test force curve and test process, is efficient push pull testing equipment in a new generation.


Description:

• SH digital push pull force gauge:
• SH-1K-100K digital force gauge
• Tension, compression test
• Units convert
• CE

Features:

• Capacity: 2N to 2000KN
• Tension, compression test
• Units convert
• CE
• Patent number: ZL200620013022.2,ZL200610072362.7
• Peak holding and auto-releasing function: The peak holding time can be set (1-10 seconds);
• Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);
• Memory function: Memory 10 testing data, and calculate the average;
• Units conversion: Converting three units(N, kgf, lbf) automatically;
• LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;
• Automatic power off function: Power off time (1-60 minutes) can be set by user;
• RS-232C output: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing.
• Power adaptor: 220V or 110V

Specifications:
