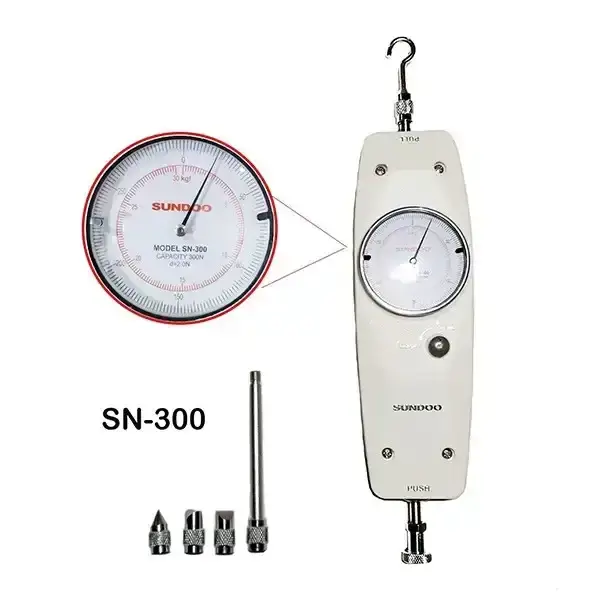

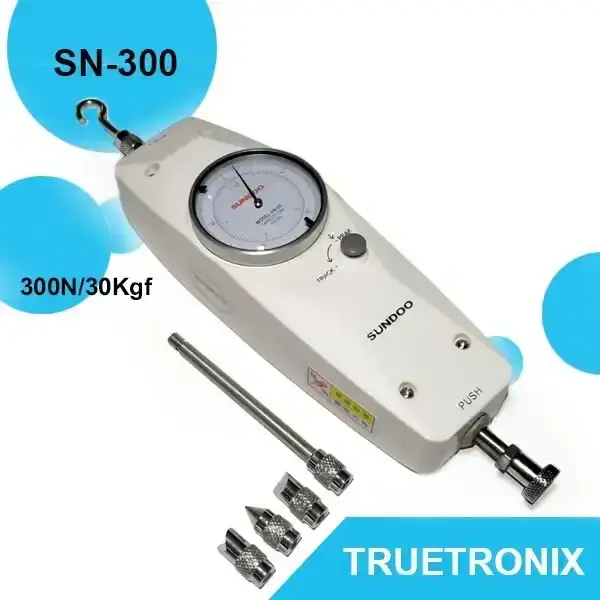

เครื่องวัดแรงดึงแรงกดแบบเข็ม Sundoo SN-300 Analog Push Pull gauge

Analog Push Pull gauge SN Series

SN series Analog Push Pull Gauge with compact size and high accuracy. They are easy to operate and handy. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force)to the tracking indication(the needle moves in accordance with change of force).As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your measurement purpose.

SPECIFICATIONS:

• Model: SN-300
• Capacity: 300N/30Kgf
• Load Resolution: 2.0N/0.2Kgf
• Accuracy: ±1%FS
• Weight: ~0.6kg
