Descriptions:

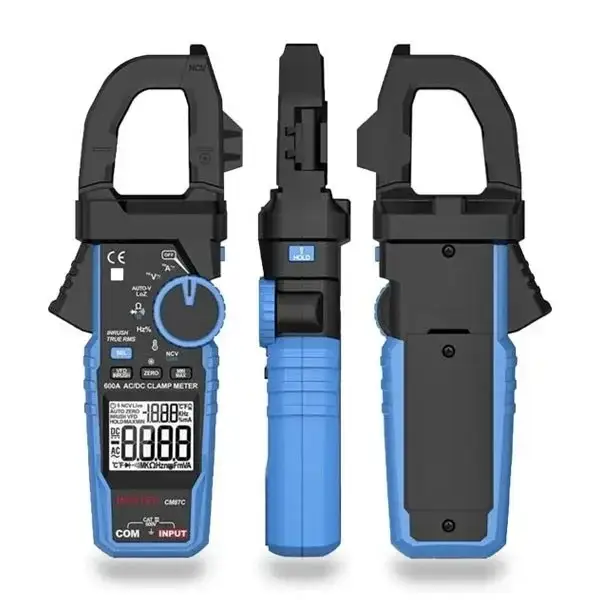

CM87C clamp electric meter is designed to measure AC and DC currents up to 600A and AC and DC voltages up to 600V, meeting the CAT III 600V requirements of the IEC/EN61010-1 standard. The clamp meter has inrush current measurement for motor starting and data retention. There will be a continuous buzzer alarm when the resistance is below 30Ω. This model can also perform resistance, capacitance, continuity test, diode test, K-type probe temperature and other measurements. The clamp meter also has an automatic power off function to save battery power.
Specifications:
- DC Voltage: 600mV/6V/60V/600V,±(0.8%+3)
- AC Voltage: 6V/60V/600V,±(1.0%+5)
- DC Current: 60A/600A,±(2.5%+10)
- AC Current: 60A/600A,±(2.5%+10)
- Inrush Current: 600A,±(10%+60)
- Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ,±(2.0%+5)
- Capacitance: 600nF/6μF/60μF/600pF/6mF/60mF,±(5.0%+10)
- K-type Temperature: -20°C-1000°C/-4°F-1832°F,±(2.0%+2)
- Continuity Buzzer: <30Ω
- Jaw Opening: Yes
- True-RMS: Yes
- Data Hold: Yes
- Backlight: Yes
- Flashlight: Yes
- Auto Power off: Yes
- NCV: Yes
- Input Impedance: Yes
- Low Battery Indication: Lower than 2.4V
- Batteries: 2*1.5V 2.4V
- Size: 254*92*45mm
- Weight About: 450g
- Safety Level: En61010-2-032,CAT Ⅲ 600V
