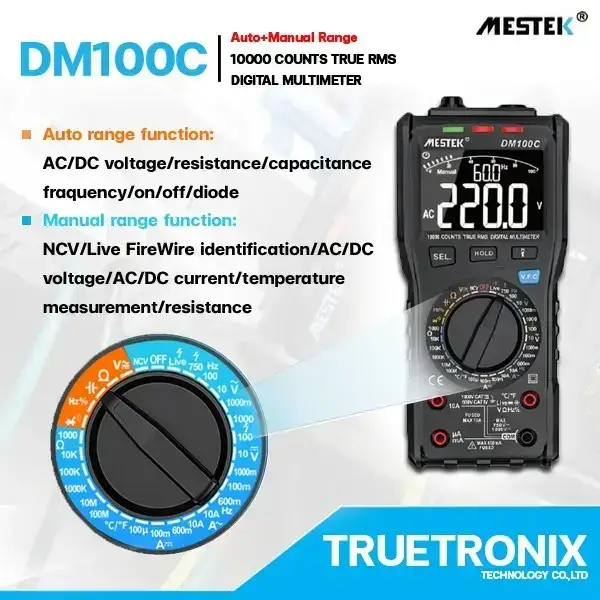

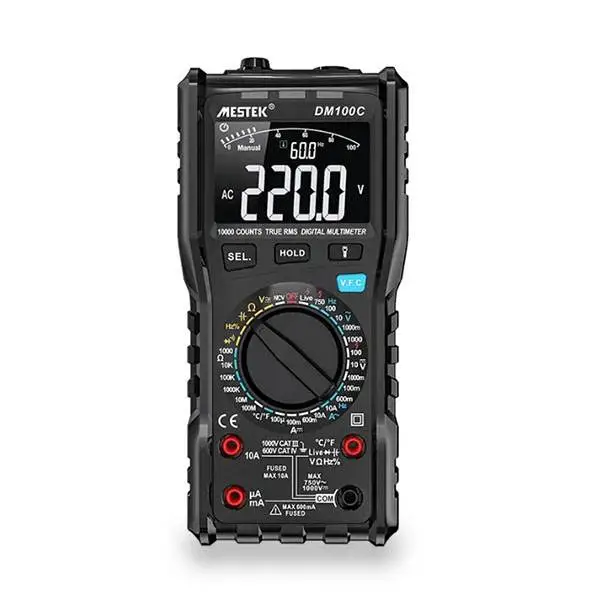

มัลติมิเตอร์ DM100C True RMS Digital Multimeter Auto-Manual Range

DM100C is a powerful digital multimeters with 10000 counts and high-precision measurement capabilities. It supports non-contact AC voltage detection, automatic detection of diodes and continuity. It is suitable for a variety of electrical measurement needs. DM100C also has ACV/ACA True-RMS measurement, frequency detection, capacitance detection and resistance detection functions. It has a wide range of applications in various electrical systems. The product is also equipped with a blown fuse warning and neutral and live wire identification functions. It complies with IEC61010-1 and CAT III 1000V safety standards, providing higher safety assurance.

SPECIFICATIONS:

• DC Voltage: 1V/10V/100V/1000V  ±(0.5%+3)
• AC Voltage: 1V/10V1100V1750V  ±(1.0%+5)
• DC Current: 99.99uA/99.99mA/600mA/10A  ±(0.8%+3)
• AC Current: 99.99mA/600mA/10A  ±(1%+3)
• Capacitance: 100nF/1μF/10μF/100μF/1mF/100mF  ±(3.5%+15)
• Resistance: 1000Ω/10kΩ/100kΩ/1000kΩ/10MΩ/100MΩ ±(0.8%+3)
• Frequency: 10Hz/100Hz/1000Hz/10KHz/100kHz/1000kHz/10MHz
• Display: 10000 Counts  ±(1%+3)
• ACV/ACA TRMS: √
• ACV(bandwidth): 1kHz
• Hz: 10MHz
• Ω: 100MΩ
• Continuity: Sound And LED Alarm
• Diode Test: √
• Batteries: 2*1.5V AA
• Size: 190*89*50(mm)
• Weight: About 500g
• Safety Level: IEC61010-1:2020 CAT Ⅲ 1000V
• Standard Accessories:
  • Multimeter-Probe-K Type Thermocouple(optional)
  • Batteries-User Manual-Color Box
