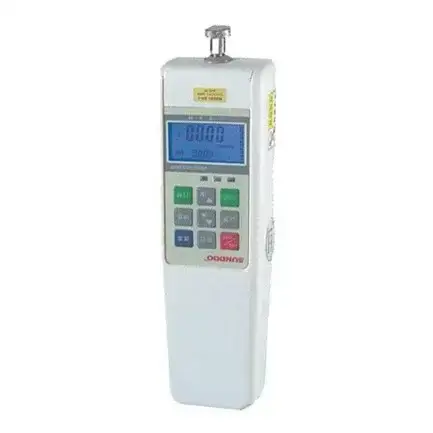

เครื่องวัดแรงดึงแรงกดดิจิตอล SUNDOO SH-500 Digital Force Gauge

Product Descriptions:

• High accuracy & High resolution: Accuracy: ±0.5% Min resolution: 0.001N
• Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set (1-10 seconds)
• Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go (Green pilot lamp)/NG(Red pilot lamp)
• Memory functions: Memory 10 testing data, and calculate the average
• Units conversion: Converting three units (N, kgf, ibf) automatically
• LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction
• Automatic power off function: Power off time (1-60minutes) can be set yourself
• RS-232C output: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing; Patent number:ZL200430151019.3,ZL200620013022.2.

Specifications:

• Model: SH-500
• Capacity: 500N
• Load Resolution: 0.1N
• Sensor Conformation: Sensor Inside
• Range: 10%~100% FS
• Inaccuracy: ±0.50%
• Power and Using: Nickel Hydride Battery, Can be used 40 hours when changed fully, standby time about 3 months
• Adaptor: AC 220V 300mA Input, DC 12V 300mA Output
• Weight: 1.8kg with the packing box
