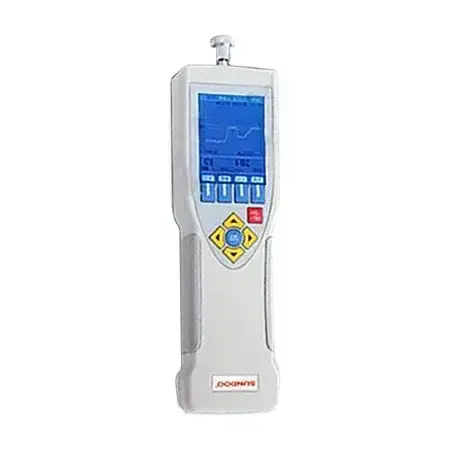

เครื่องวัดแรงดึงแรงกดดิจิตอล SUNDOO SP-100 Digital Force gauge

DESCRIPTIONS:

• High accuracy and high resolution.
• TFT LCD displaying peak value, instantaneous value, and curve of testing process on one page, monitoring and tracking the whole testing process, 240*320 pixel with color of TFT65535.
• Overturning display screen.
• Units (N, kgf, lbf, ozf).
• Testing the material intensity by inputting the material’s cross sectional area, displaying the material’s intensity curve.
• USB data port, supporting hot plug.
• Memory, transmit, track testing curve data unlimitedly by connecting PC with configured software.
• Print form by user-defined with the matched software.
• Automatic power-off.

SPECIFICATIONS:

• Model: SP-100
• Capacity: 100N
• Load Resolution: 0.05N
• Sensor conformation: Sensor Inside
• Measuring range: 10%~100%FS
• Inaccuracy: ±0.5%
• Power: 8.4V  1.2Vx7 (Nickel hydride battery)
• Charging time: about 4 hours
• Operating time: about 40 hours
• Waiting time: 3 month
• Battery life: ≥300 times
• Adaptor: Input: AC 220V 50Hz, Output: DC 12V 300mA
• Weight: about 0.9 kg
