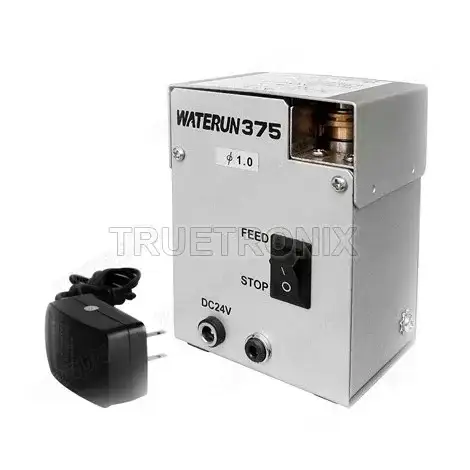

เครื่องจ่ายและผ่าลวดตะกั่ว WT-375 Solder Feeding Machine

FEATURES:

• Effectively cut open the tin wire
• Eliminate splash engendered by the high temperature welding, Improve the quality of welding quality.
• Test conditions:
• Set the temperature at 350°C and 400°C, add 1.0 * 500 mm of lead-free solder (Sn-3Ag-0.5Cu) to the welding tip, and then measure the weight of flying flux.
• According to different test condition, the additive flux will be different from flying weight

SPECIFICATIONS:

• Model: WT-375
• Input voltage: 110v/220v
• Mainframe power: DC24V 75mA
• Outline Dimension: 76W*96H*50(D)mm
• N.W: About 590g
• Speed: 30mm/s
• Tin wire Diameter: 0.5/0.6/0.8/1.0/1.2/1.5/1.6mm
