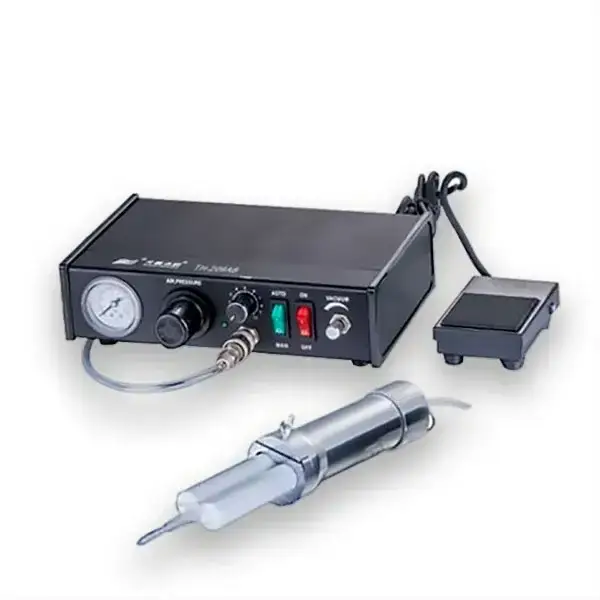

เครื่องจ่ายกาวอีพ็อกซี่ AB Epoxy Glue Dispenser

FEATURES:

• Contains two liquid mix syringes, which enable reduced the labor intensity.
• The replacement from glue to water is convenient.
• Contains an analog timer with a knob to arrive to the dose required.
• Possibility to choose between a foot pedal or a ring or an induction switch.
• Can be completed with an accessory dispensing kit.

SPECIFICATIONS:

• Models: TH-206AB
• Standard: CE Approved
• Control: E-pneumatic
• Liquid ratio: 1:1,1:2,1:4.1:10
• Mixing method: static mixer
• Feed system: Double Syringe+Double Valve
• Operating Model: Manual, Timer/cycles
• Start way: Foot Pedal, Finger Switch
• Air Output: 0.1bar~7bar
• Dispensing time: 0.01S-1S;0.1S-10S;0.2S-20S
• Cycles (interval) time: 0.1~9.9S
• Repeatability: 0.001S
• Leak-proof function: valve with Vacuum device
• Air Input: >5 bar(1bar =1.01972kg/cm² =14.5038psi)
• Input voltage: 110/220VAC(Internal conversion)
• Dimensions (WxDxH) mm: 281x210x70mm
• Weight: <4Kgs
