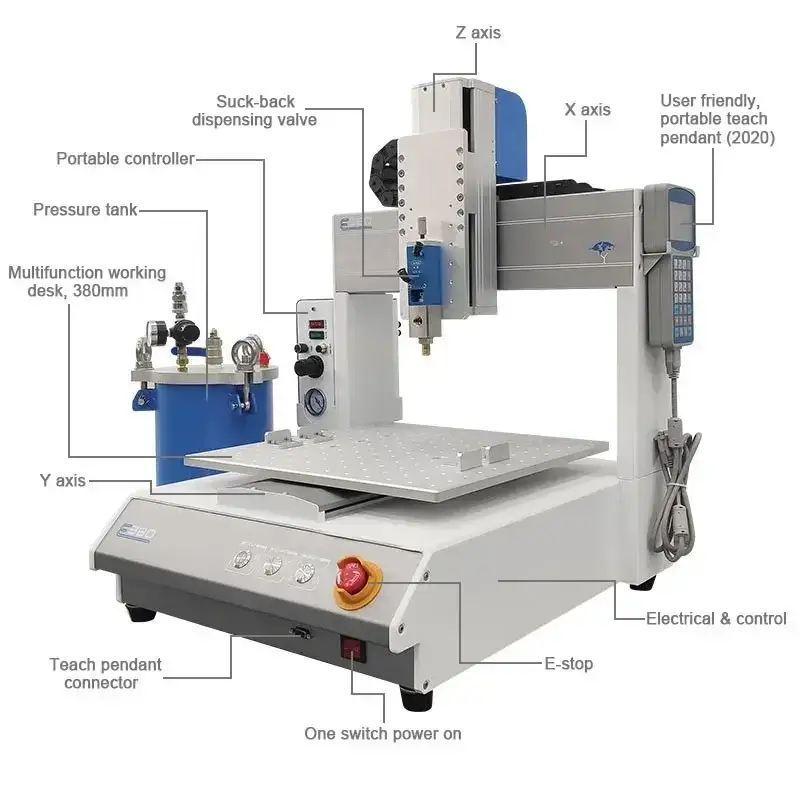

เครื่องหยอดของเหลวอัตโนมัติ Automatic Fluid Dispenser SEC-E380

Features:

• This new machine’s main body is made out of one-piece aluminum casting molding, strong structure, stable and user friendly operation.
• It provides 380x380x100mm maximum XYZ strokes for extra dispensing needs.
• The machine is designed to adapt different type of dispensing applicators for different fluid or glue. Once your bought the Cartesian CNC machine, you just need to choose different applicators. It is really One for All. According to our research, with the seven different applicators, you are covering about 80% of the desktop dispensing needs.
• The multi purposes clamping system allow to match with different material filling devices, and valves, and allow quick changeover. It achieves the dispensing of different products of different processes.
• This is really a good machine from a reliable factory, with over 15 years focus business on the fluid and glue dispensing, potting industry.
• Dispensing and potting are the precise manipulating between air, fluid, or adhesive, don’t waste your money on the cheap and non professional suppliers, you will end up buying many spare parts, and a new machine again.

Specifications:

• Model: SEC-E380
• Working range: 380(X)*380*(Y)*100(Z)mm
• Max payload: 7kg/5kg
• Max travel speed: 500mm/sec(XY)/100mm/sec(Z)
• Transfer method: Stepper motor, belt, precision rail
• XYZ position accuracy: ±0.008mm
• Resolution: 0.01
• Memory storage: 999 program setup (each program store up to 65535 spots)
• Operating method: LCD, Teach pendant
• Motor: Precision stepper motor
• Movement patterns: 3 axis spot to spot, continue line, arc
• I/O: 1 input, 4 output (support expansion)
• Power supply: AC220V 50/60Hz 0.5kw
• Working environment: Temperature 0-40℃, Humidity 20-90%
• Machine dimension: 520*583*645mm
• Weight: 48kg
