เครื่องวัดแรงบิด Torque Tester ST series

฿0.00
Measured and calibrated torque of motorize or air-driving clamps, torque screwdriver and torque spanner.
  • หมวดหมู่ : เครื่องมือวัดแรงบิด
  • รหัสสินค้า : 000325

รายละเอียดสินค้า เครื่องวัดแรงบิด Torque Tester ST series

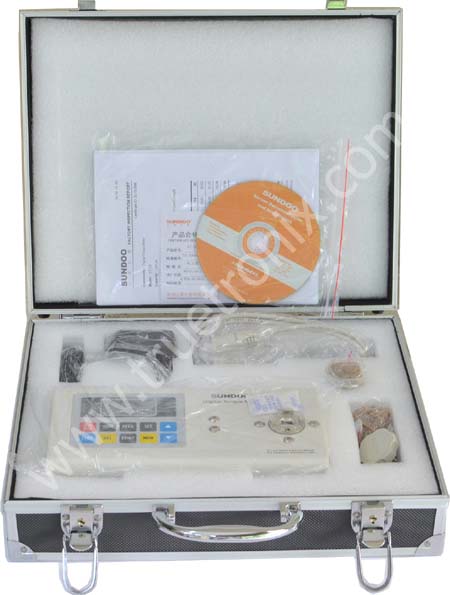

เครื่องวัดแรงบิด Torque Tester ST series



DESCRIPTIONS:

As a special precision measuring equipment, ST Series Digital Torque Meter is R&D for testing and measuring many kinds of torque. The Meter is applied with the measured and calibrated torque of motorize or air-driving clamps, torque screwdriver and torque spanner.



FEATURES:

  • Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds);
  • Automatic power off function: This function saves battery and keeps the gauge safe, also the power off time(1-60minutes) can be set By yourself;
  • Comparing function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);
  • Memory function: Memory 10 testing data, and calculate the average;
  • Three units conversion: Converting three units(N.m, kgf.cm, ibf.in) automatically;
  • RS-232C output: Connecting outside equipment and using the related CD for transmitting the tested data to computer for relevant treatment.
  • Test ramge: 1N.m to 500N.m



SPECIFICATIONS:

Models ST-1 ST-2 ST-5 ST-10 ST-20
Capacity (N.m) 1 2 5 10 20
Resolution (N.m) 0.0005 0.001 0.002 0.005 0.01
Sensor Conformation Sensor inside
Testing Speed 5000rpm
Power 8.4V 1.2Vx 7 Nickl Hydride Battery
Charging time About 4 hours
Battery Operating time About 12 hours
Battery life 300 time
Adaptor Inpout:AC 220V50Hz   Output:DC 12V 300mA
Accuracy ±0.5%FS
Weight About 2.4kg
