IT-09 Dosimeter เครื่องตรวจวัดรังสีรั่วไหลแบบติดตั้งกับเครื่องเอ็กซเรย์

Branches of Use

• Nuclear power industry
• Metallurgy
• Radiological laboratories
• Radioactive waste storage sites
• Medical

Purpose of Use

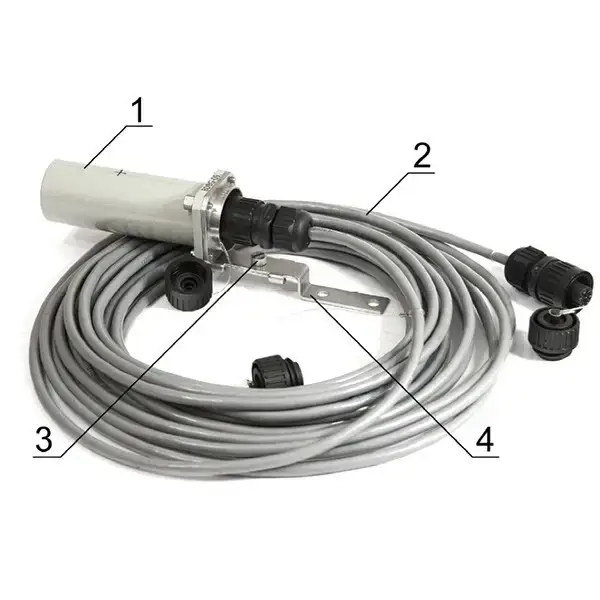

• Display of measurement results of ambient dose equivalant rate (DER) of gamma radiation abtained from BDBG-09 detecting unit of gamma radiation.
• Audio and light alarming when threshold level of gamma radiation DER exceeded.

Specifications:

• DER display range – 0.01… 10⁷ µSv/h.
• Number of digits for DER display – three.
• Three threshold levels programming in the range of 0.01 µSv/h to 9.99 Sv/h with 0.01 µSv/h discreteness.
• Signaling when threshold levels exceeded – audio (with different soundings for each threshold level), and light (color change of DER measurement display).
• Operation in the network through the RS-485 interface.
• Power supply from industrial network (220 V) through the power adapter.
• Operating mode – 24-hour continuous.
• Distance between the panel and the detecting unit – from 0.5 to 50 m.
• Dimensions – not more than 345x135x40 mm.
• Weight (without the power adapter) – 1.0 kg.
• Mounting method – upright wall-mounted.
