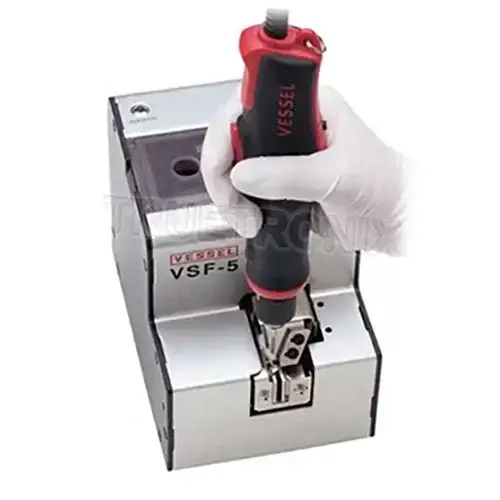

เครื่องป้อนจ่ายสกรู VESSEL VSF-5 Screw Feeder

Specifications:

• Model: VSF-5
• Input voltage/current: DC15V 0.7A
• Compatible screw sizes: Regular screws / tapping screws: M1.0 to M5.0 Screw under head length maximum 20 mm
• Screw capacity: 200 cc
• Width x depth x height: 126×182×147mm (excluding protrusions)
• Weight: 2.2kg (excluding accessories)
• Working temperature/humidity: 0~40℃ 10~95%RH (with no dew condensation)
• Installation place: Limited to indoors

AC adapter

• Model: AD15-VSF
• Rated input voltage: AC100-240V (50/60Hz) 0.8A
• Rated output voltage: DC15V 1.5A
• Working temperature/humidity: 0~40℃ 10~95%RH (with no dew condensation)
• Cord length: Cord approx. 1.8m
• Weight: 136g

Spare parts

• Stopper: For M1.0 to 2.0 ... 1 pc., for M2.3 to 5.0 ... 1 pc.
• Rail width front section adjustment plate (mm): 70 x 90 x t0.8, t1.0, t1.2, t1.5, t2.0 ... one plate each
• Rail width rear section adjustment plate (mm): 20 x 10 x t0.2 ... two plates, 20 x 10 x t0.5 ... ten plates
• Other items: L-shape hexagon wrench H2.0 mm x 108 mm, grounding wire, Instruction manual
