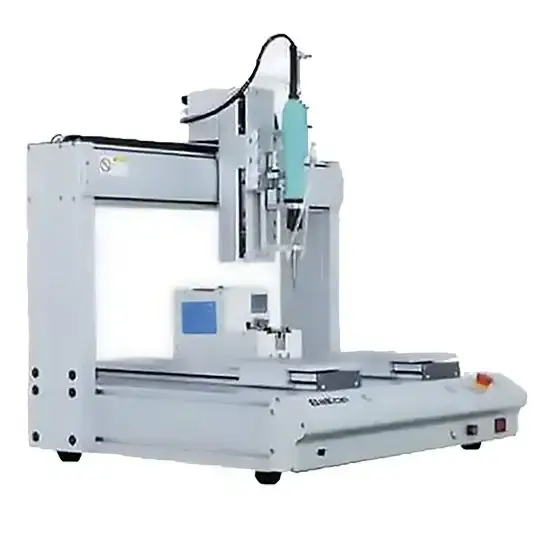

หุ่นยนต์ขันสกรู Double Y Suction Type Automatic Screwing Machine

Description:

This machine has two Y-axis arms that can work at the same time or separately. It uses vacuum suction to pick up and place screws quickly

Specifications:

• Machine size: L730*W610*H860 mm
• Large working platform: 660mm*610mm*106.5mm
• Drive mode: Double shaft precision step drive
• Adjustment: 1~600mm/sec
• Total Weight: 70 kg
• Power motor: Step motor; garment motor (optional)
• Repeatability: ±0.1 / ±0.05 mm
• Screw method: Synchronous belt + screw precision straight line rail
• Control System: Three axis control system
• Applicable locking screws: M1.5~M5.0
• Screw feeding method: Suction type
• Lock-up efficiency: 1.0~2.5S/piece, depending on the screw
• Supporting Documentation: CAD/CorelDRAW
• Power supply: 100~200 VAC
