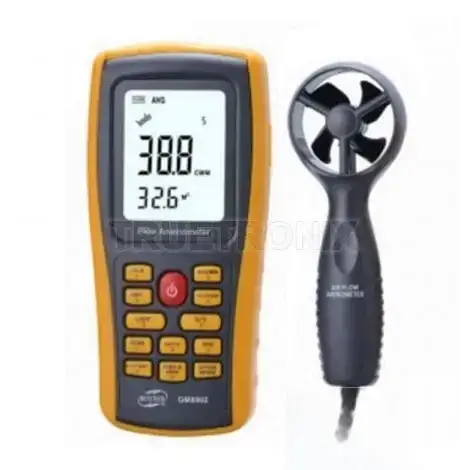

Digital Air Flow Anemometer with USB interface (Model No.: GM8902)
This digital anemometer is a professional tool for industrial and home purposes such as measuring speed and temperature of air-conditioners, CPU computer fans, airflow over the roof or walls. It also measure wind flow in CMM or CFM, special measurement of 2/3 Vmax and average wind flow. USB connected to computer for real time meaurement or download measured data.
Technical Function and Specification:
- Measurement items: Air velocity, Air temperature & Air quantity
- Measurement range
- Air velocity: 0.3~45 m/s
- Air temperature: 0~45ºC, 32~113ºF
- Unit of Velocity: m/s, ft/min, knots, km/hr, mph
- ºC/ºF Selection
- Air temperature measuring error: ± 2℃
- Air velocity measuring error: ± 3% ±0.1dgts
- Measurement of 2/3 Vmax and average wind flow
- Backlight display
- Max/Min reading (Air velocity)
- Average/Current reading (Air velocity)
- Data holding, Data record and Data clear function
- Wind chill indication
- Low battery indication
- Manual/Auto power shut off (10 minutes without any operation)
- Storage memory of 500 records
- Connecting to computer with USB cable
- Operating temperature: 0ºC ~ +50ºC (32ºF ~ 122ºF)
- Operating humidity: <= 80%RH
- Store temperature: -40ºC ~ +60ºC (-40ºF ~ 140ºF)
- Store humidity: <= 80%RH
- Packing method: PP box + Gift box
- Power supply: AAA 1.5V battery * 4pcs
- Dimension:
- Main unit: 77 x 36 x 164mm
- Vane: 172 x 65 x 29mm
- Net weight: 330g (excluding battery)
- Compliant to CE/ROHS/FCC standard
- Air Velocity Measurement (unit):
- M/s
- Range: 0.0 - 45.0
- Resolution: 0.001
- Lowest Point of start value: 0.3
- Accuracy: +/-3% +/-0.1dgts
- Km/hr(kph)
- Range: 0.0 - 140.0
- Resolution: 0.001
- Lowest Point of start value: 1.0
- Accuracy: +/-3% +/-0.4dgts
- Mph
- Range: 0.0 - 100
- Resolution: 0.001/0.01
- Lowest Point of start value: 0.7
- Accuracy: +/-3% +/-0.2dgts
- Knots(kts)
- Range: 0.0 - 88.0
- Resolution: 0.01
- Lowest Point of start value: 0.6
- Accuracy: +/-3% +/-0.2dgts
- Ft/min(fpm)
- Range: 0.0 - 8800
- Resolution: 0.01/0.1/1
- Lowest Point of start value: 60
- Accuracy: +/-3% +/-20dgts
Wind flow range:
- CMM (ft3/mim)
- Range: 0 ~ 999,900
- Resolution: 0.001 ~ 100
- Area: 0.001 ~ 9999
- CFM (m3/min
- Range: 0 ~ 999,900
- Resolution: 0.001 ~ 100
- Area: 0.001 ~ 9999
Temperature:
- Celsius
- Range: 0.0ºC - +45.0ºC
- Resolution: 0.1
- Accuracy: +/- 1.0ºC
- Farenheit
- Range: 32.0ºF - 113.0ºF
- Resolution: 0.1
- Accuracy:+/- 1.8ºF

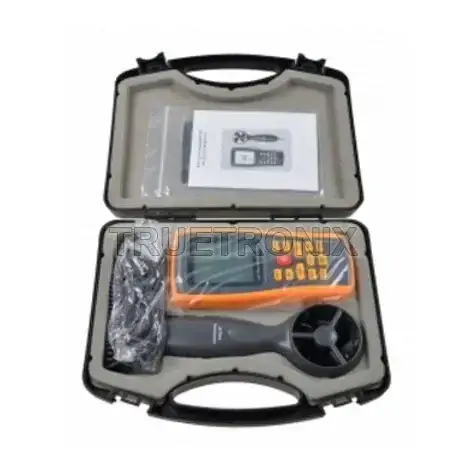

Packet Content:
- 1 x Hand-held anemometer
- 1 x Vane
- 1 x Rubber protection pouch
- 1 x USB cable
- 1 x CD (Software for Windows XP/ Win 7
- 1 x Instruction Manual (English)
- 1 x Plastic suitcase
- 4 x AAA batteries
ONE YEAR MANUFACTURER WARRANTY
