FEATURES:

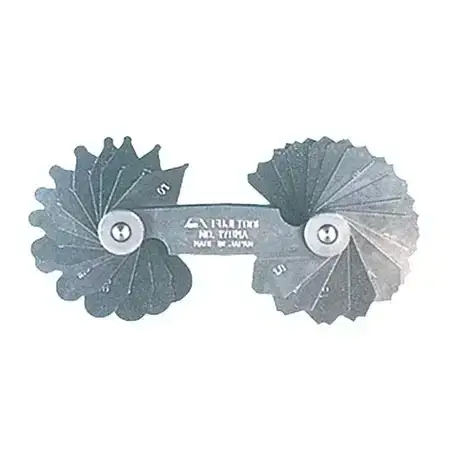

The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.
SPECIFICATIONS:
| Code No. | Model No. | Leaves | Size Composition/Contents(mm) |
| 01-308 | 178MAA | 20 | 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 |
| 01-316 | 178-112 | 20 | 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 |
| 01-317 | 178-213 | 20 | 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 |
| 01-309 | 178MA | 34 | 1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.5 4.0 |
| 4.5 5.0 5.5 6.0 6.5 7.0 | |||
| 01-310 | 178MB | 32 | 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 |
| 13.0 13.5 14.0 14.5 15.0 | |||
| 01-315 | 178MR | 30 | 15.5 16.0 16.5 17.0 17.5 18.0 18.5 19.0 19.5 |
| 20.0 21.0 22.0 23.0 24.0 25.0 | |||
| 01-311 | 178MC | 16 | 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 |
| 01-312 | 178MD | 14 | 24.0 25.0 26.0 27.0 28.0 29.0 30.0 |
| 01-313 | 178ME | 20 | 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 |
| 01-314 | 178MF | 20 | 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 |
| Code No. | Model No. | Leaves | Size Composition/Contents(inch) |
| 01-301 | 178A | 30 | 1/32" to 1/4" by 64ths |
| 01-302 | 178B | 32 | 17/64" to 1/2" by 64ths |
