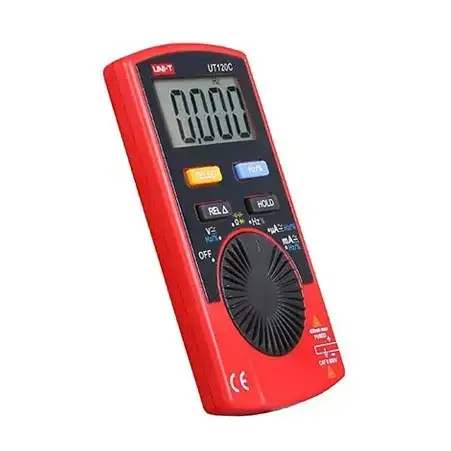

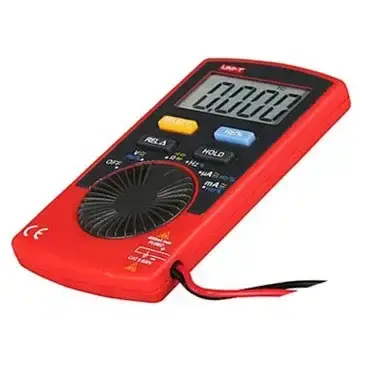

ดิจิตอลมัลติมิเตอร์ UNI-T UT120C Digital Multimeter

Features:

• Display Count: 4,000 counts LCD screen (43mm × 22mm)
• Ranging Mode: Full auto-ranging
• Duty Cycle: 0.1% ~ 99.9%
• Component Testing: Integrated diode testing and continuity buzzer
• Power Management: Auto power-off after approximately 30 minutes of inactivity; low battery warning indicator (≤2.4V)
• Functional Modes: Data Hold button and Relative Mode toggle
• Input Impedance: ~10MΩ for DC Voltage measurements

Specifications:

• DC Voltage (V): 400mV / 4V / 40V / 600V  ±(0.8% + 1)
• AC Voltage (V): 4V / 40V / 400V / 600V  ±(1.2% + 3)
• DC Current (A): 400µA / 4mA / 40mA / 400mA  ±(1.0% + 3)
• AC Current (A): 400µA / 4mA / 40mA / 400mA  ±(1.5% + 5)
• Resistance (Ω): 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ  ±(1.0% + 2)
• Capacitance (F): 4nF / 40nF / 400nF / 4µF / 40µF / 100µF  ±(4.0% + 3)
• Frequency (Hz): 10Hz ~ 10MHz  ±(0.5% + 3)
