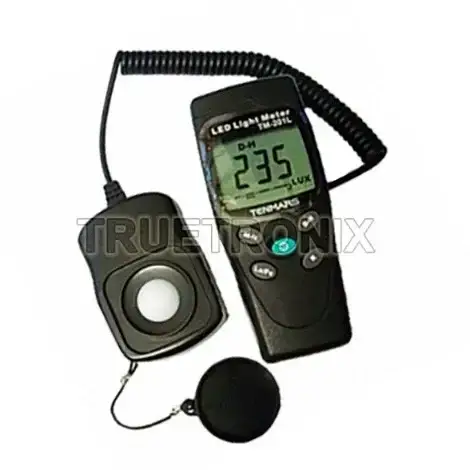

Tenmars TM-201L LED Light Meter up to 200000 Lux

LED Light (LUX/FC) Meter with corrected LED white Light measurement (Model No.: TM- 201L)

DISPLAY:

• 3½ digits LCD with maximum reading 2000.
• Overload indication : “OL” .
• Low battery indication

FUNCTIONS:

• According to JISC1609:1993 and CNS 5119 general A class specifications.
• Spectral responce close to CIE luminous spectral efficiency.
• Measuring intensities of illumination in Lux or Foot-candle.
• Silicon photodiode and filter.
• Measuring lights source include all visible light sources.
• Length of wire for light sensor: approximately 1.5M.
• Cosine angular corrected.
• Many applications include: warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, video, parking garages, museums, art, galleries, stadiums, building security.

SPECIFICATIONS:

• Display : 3½ digits, 2000 readings
• Data hold :Yes
• Max/Min hold : Yes
• Zero adjustment : Yes
• Sensor : Silicon photo diode and filter
• Measuring range :
• 200, 2000, 20000, 200000 Lux
• 20, 200, 2000, 20000 Foot-candle
• Accuracy : 3% (Calibrated to standard incandescent lamp 2856º K and corrected LED day white light), 8% (other visible light source )
• Angle deviation from cosine chararcteristics : 30º, 60º, 80º
• Meter size (LxWxH) : 130x55x38mm
• Sensor size (LxWxH) : 80x55x25
• Weight (including 9V battery) : 250g

Standards Certification:

• CE
• ROHS
