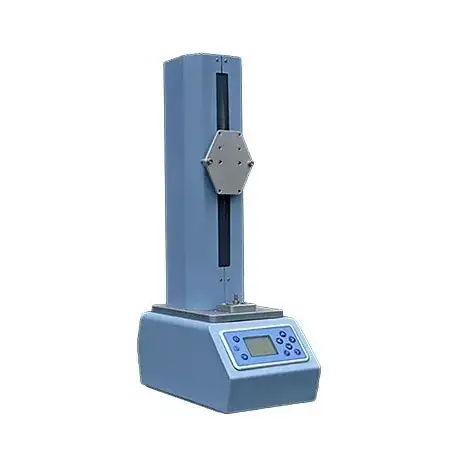

แท่นทดสอบแรงดึงแรงกดระบบไฟฟ้า Motorized Test Stand EST-FG2V

FEATURES:

• Multiple operation modes: Manual, Auto Cycle, Demo(Teaching & Playback).
• Multiple output & input: USB, RS232, Set point.
• Multiple protection: Force gauge set point, Limit switch, Locked rotor.
• Force gauge data integration capability.

SPECIFICATIONS:

• Test Mode: Manual/Program
• Travel: 220 mm
• Accuracy/Resolution of Displacement:± 0.3 mm/0.1mm
• Adjustable speed: 0.6~12mm/sec(adjustable).Speed setting accuracy: ± 3%
• Resolution of Speed: 0.1mm/sec
• Capacities: 65 kg (140 lbf, 650 N)
• Display: Dot matrix LCD with backlight
• Signal Output: USB(to PC)
• Signal input: RS232, set point(from force gauge)
• Power Supply: 100~230 VAC(1 A)
• Dimensions: 340*180*630mm;
• Weight: 15.5Kg
