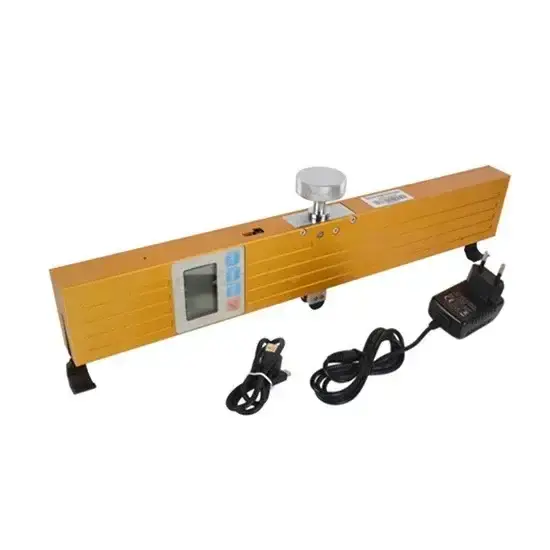

เครื่องวัดแรงตึงสลิงลิฟต์ DGZ-Y-3000 Elevator rope tension meter

Features:

• Easy to carry: use high-strength aluminum alloy structure, light weight, small size, simple operation.
• Stable performance and high accuracy. Support one wire rope multipoint testing, greatly improve the test accuracy
• LCD screen, digital display, easy to read value.
• Three units: N, Kgf, Lbf.
• Can store 383 sets of testing data and transmit it to the computer via USB, and manage it.

Application:

Elevator Rope Tensionmeter is mainly used to test the tension and traction of elevator traction wire rope. When the elevator is in the installation, acceptance and inspection, through testing and adjusting each traction wire rope, make sure the tension of every one as same as possible, so can extend the service life of the traction wheel and make the elevator wire rope run more smoothly. The tensiometer can also be used in bridge sling, tower connection line, overhead conductors, index wire rope and all involving the wire tension tests.

Specifications:

• Model: DGZ-Y-3000
• Rope Diameter (mm): Ø6, Ø8, Ø10
• Max Load: 3000N
• Division Value: 1N
• Measuring Range: Full scale 10%-90%
• Accuracy: ≤±5%
• Power: 7.2V 1.2Vx6 Ni/MH batteries
• Charger: Input : AC 100⁓240V  Output : DC 12V 500mA
• Weight (Kg): 1.4
