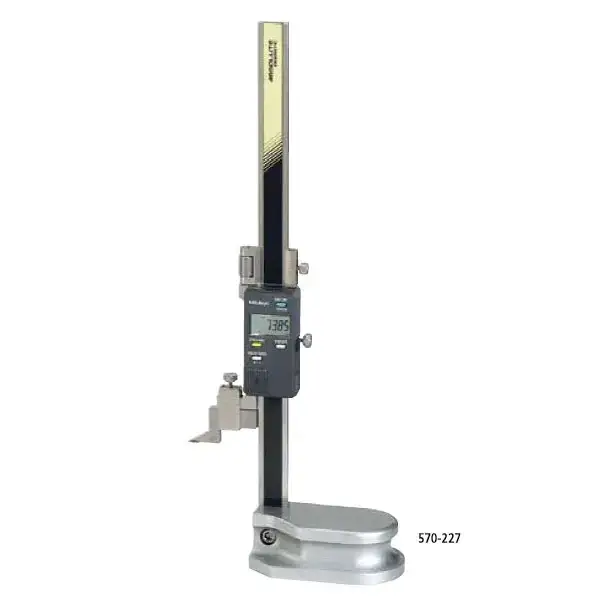

เกจวัดความสูง Mitutoyo 570-227 Digital Height Gage

Feature

• Built-in ABSOLUTE linear encoder This encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed
  error will occur. ABSOLUTE Digimatic Height Gage
  SERIES 570 — with ABSOLUTE Linear Encoder
• Fine-adjustment carriage to feed the slider finely.
• Carbide-tipped scriber is provided.
• With SPC data output.

Specifications

• Model: 570-227
• Range: 0-200mm
• Accuracy: ±0.03mm

Technical Data

• Accuracy: Refer to the list of specifications.(excluding quantizing error for digital models)
• Resolution: 0.01mm or .0005"/0.01mm
• Display: LCD, 6-digit
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 5000 hours under normal use

Function

• Origin setting, ABS/INC switching, Presetting, -/+ switching, Data hold, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
