ประแจปอนด์ดิจิตอล 100-500Nm T6DT500H - Digital Torque Wrench

DIGTOPQON TDT-series is a digtal torque measurement device with ratchet.

Digital LED display enable easy toque management.

Alert by beeping sound when reching th target torque.

Data trnsfer function available.

 SPECIFICATIONS:

• Model : T6DT500H
• Torque Range Min.-Max. (N.m) : 100 ~ 500
• Min. Torque (N.m) : 5 ~
• Increment (N.m) : 0.1
• Unit (*1) : N.m

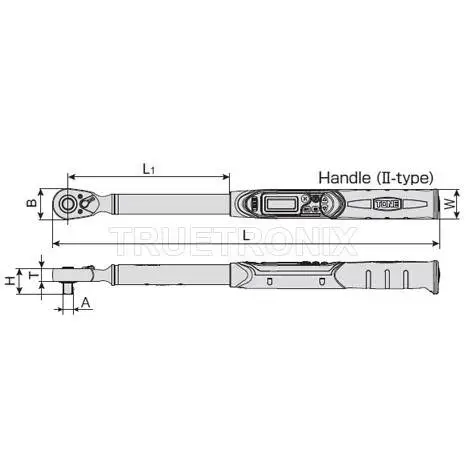

• Handle Type : II
• Square Drive dr A (mm) : 19.0
• Dimensions (mm) B : 60.0
• Dimensions (mm) H : 55.0
• Dimensions (mm) T : 30.0
• Dimensions (mm) W : 39
• Dimensions (mm) L : 945
• Dimensions (mm) L1 : 634
• Weight (kg)(*2) : 3.00
• Accuracy : ±3.5%
• Battery : AAA Alkaline or Manganese or Nickel Metal Hydride Rechargable Battery x2
• Battery Life (*3) : Continuous operation: 110 hrs (LED ligth Off) Standby: 12 months (LED ligth Off)
• Operating Temperature : -10°C ~ 60°C
• Storage Temperature : -20°C ~ 70°C
• Humidity : Less than 90%RH

*1:Selectable Unit: N.m (preset). in-lb, ft-lb, kg-cm

*2:Exclude battery.

*3:Battery life varies depending on conditions. Automatically shut off when the battery life is low.

Accessory:

• Communications Software : 1
• USB Cord : 1
• AA Alkaline : 2
• Calibration Certidicate W/H Tracebility : 1
• Instruction Manual : 1
• Plastic Case : 1
