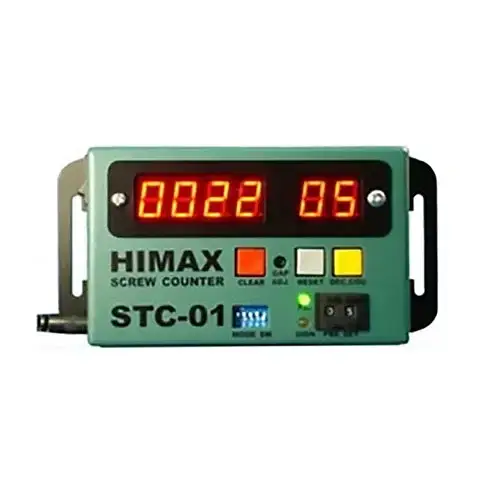

เครื่องนับจำนวนสกรู HIMAX STC-01 Screw Counter

Descriptions:

• Fitted with CTL-50 power controller, can be used for HIMAX TL series electric screwdrive.
• With screw counting function, it can preset the lock screw quantity required for the work piece to avoid missing out unlocked screws.
• Count 1-99 screws according to the different quantity of screws that the work place needs to lock.
• After locking the last screw, the buzzer gives a sound to prevent missing out and notify the end.
• Each time after finish a work piece, the counter will be auto reset and immediately ready for next turn of operation. (Do not count for the second repeated locking operation of the same screw in a short period of time.)
• It can adjust time judge according to the degree of difficulty of screw operation.
• Prevent error counting and more other functions, convenient and practical.

Specifications:

• Model: STC-01
• Finished product counting range: 0000~9999
• Screw counting range: 00~99
• Input Signal: Contact type signal (such as relay's mechanical switch, semi-conductor's joint less signal ets.)
• Input Power: DC 9V / 100mA
• Dimension: 126 x 80 x 25mm
• Weight: 360g
